ATF Cooler Pipe and Hose: Installation

Install the ATF cooler pipe assembly to frame.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

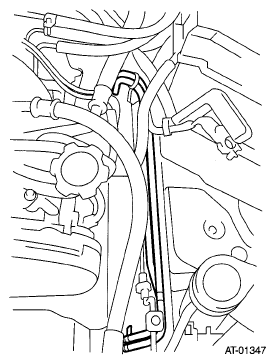

Fig 1: Identifying ATF Cooler Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Attach the bolts securing the ATF cooler pipe assembly, and attach the ATF cooler pipe hose.
NOTE: Use a new ATF hose.

Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

Fig 2: Locating ATF Cooler Pipe Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the harness connector to the A/C pressure sensor.
Connect the ATF radiator outlet hose to the upper side of the radiator.
NOTE: Use a new ATF hose.

Fig 3: Identifying ATF Radiator Outlet Hose And Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the front bumper. < Ref. to INSTALLATION , Front Bumper. >
Lift up the vehicle.
Install the ATF AT inlet pipes and outlet pipes with new washer.
NOTE: Use a new bolt for the converter case joint.

Tightening torque:

T1: 40 N.m (4.1 kgf-m, 29.5 ft-lb)

T2: 38 N.m (3.9 kgf-m, 28.0 ft-lb)

T3: 45 N.m (4.6 kgf-m, 33.2 ft-lb)

Fig 4: Identifying ATF AT Inlet Pipes And Outlet Pipes
Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF AT inlet and outlet hoses to the pipe on the transmission side.
NOTE:
- Install so that the hose is not folded over, excessively bent or twisted.
- Insert the hose to the specified position.
- Use a new ATF hose.
Fig 5: Identifying ATF AT Inlet And Outlet Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the ATF radiator inlet hose under the radiator.
NOTE:
- Install so that the hose is not folded over, excessively bent or twisted.
- Insert the hose to the specified position.
- Use a new ATF hose.
Fig 6: Identifying ATF Radiator Inlet Hose, Radiator Hose And Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe.
Install the under cover.
Fill with the ATF and check the level. < Ref. to AUTOMATIC TRANSMISSION FLUID . >
NOTE: Make sure there are no ATF leaks in joints between the transmission, radiator, ATF pipes, and ATF hoses.
