Oil Pressure System: Wiring Diagram

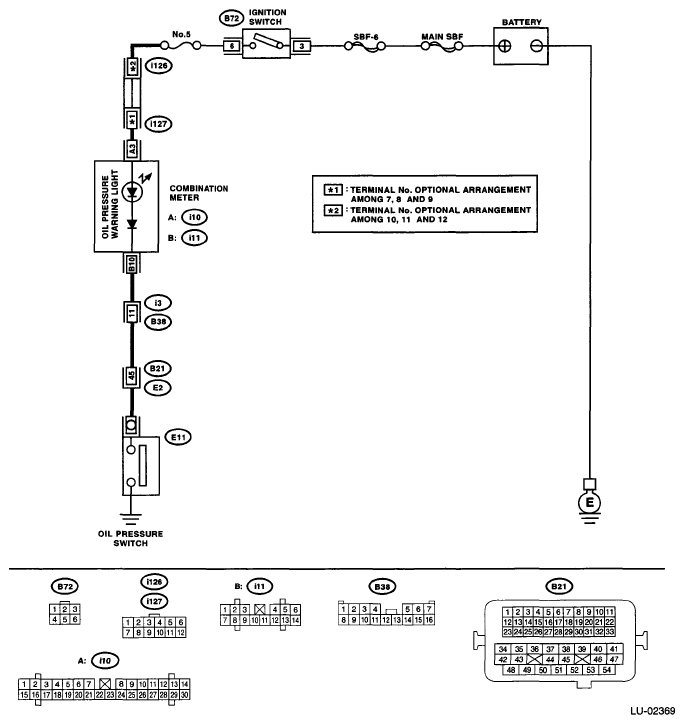

Fig 1: Identifying Oil Pressure System Wiring Diagram

G05668060

Courtesy of SUBARU OF AMERICA, INC.
