Vehicle Dynamics Control System (Diagnostics)
>>
Check List for Interview
>>
Check
>>
Conditions Under Which Trouble Occurs
Conditions Under Which Trouble Occurs

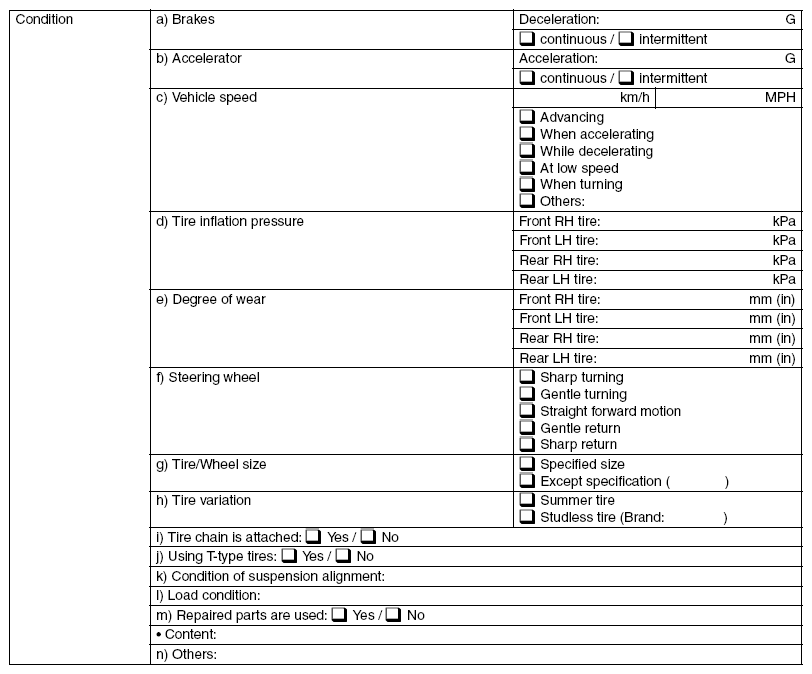

Fig 1: Interview Check List - Conditions Under Which Trouble Occurs (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

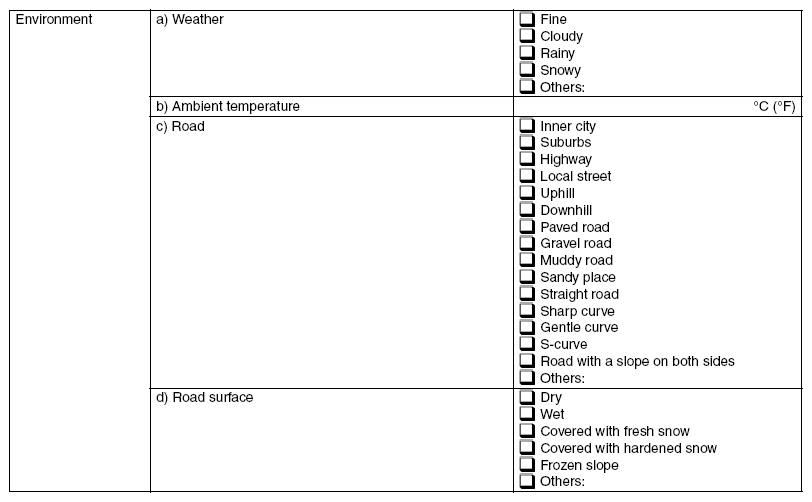

Fig 2: Interview Check List - Conditions Under Which Trouble Occurs (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
