Second-Row Seats

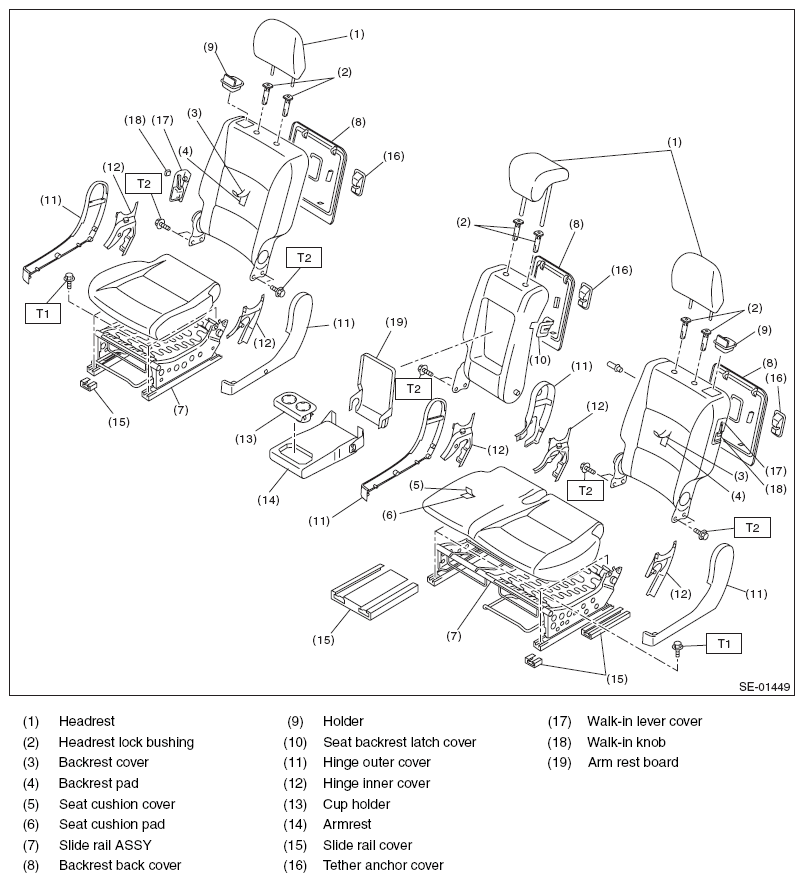

Fig 1: Second-Row Seats Replacement Components With Torque Specifications

G08546580

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 40 (4.08, 29.5)

T2: 52 (5.30, 38.4)
