Rear Gate Lock

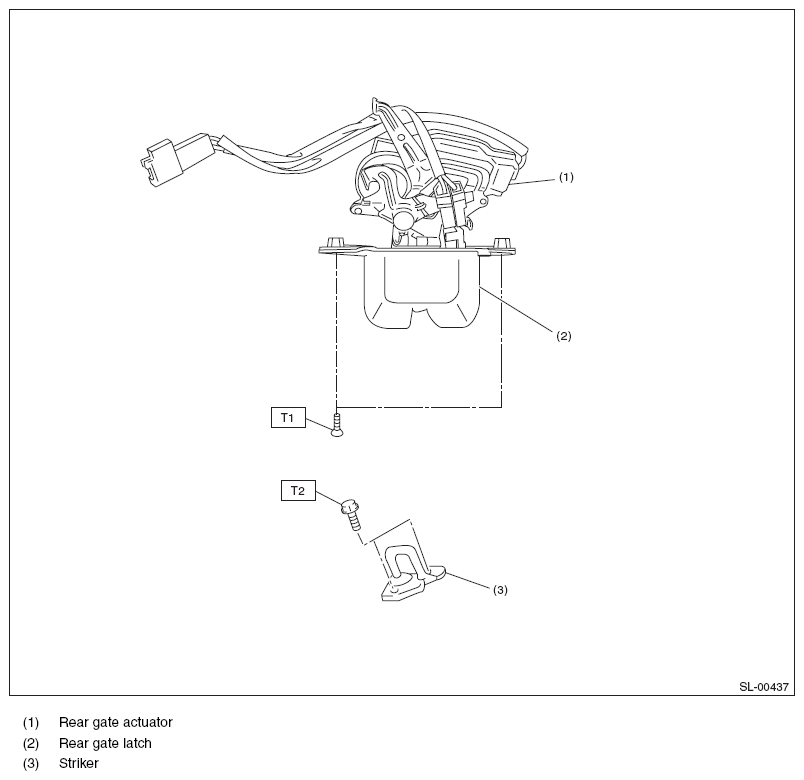

Fig 1: Rear Gate Lock Replacement Components With Torque Specifications

G08546669

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 28 (2.8, 20.6)

T2: 25 (2.5, 18.4)
