DTC P0107 Manifold Absolute Pressure/Barometric Pressure Circuit Low Input: Wiring Diagram

Engine electrical system. Refer to appropriate ENGINE PERFORMANCE wiring diagram.

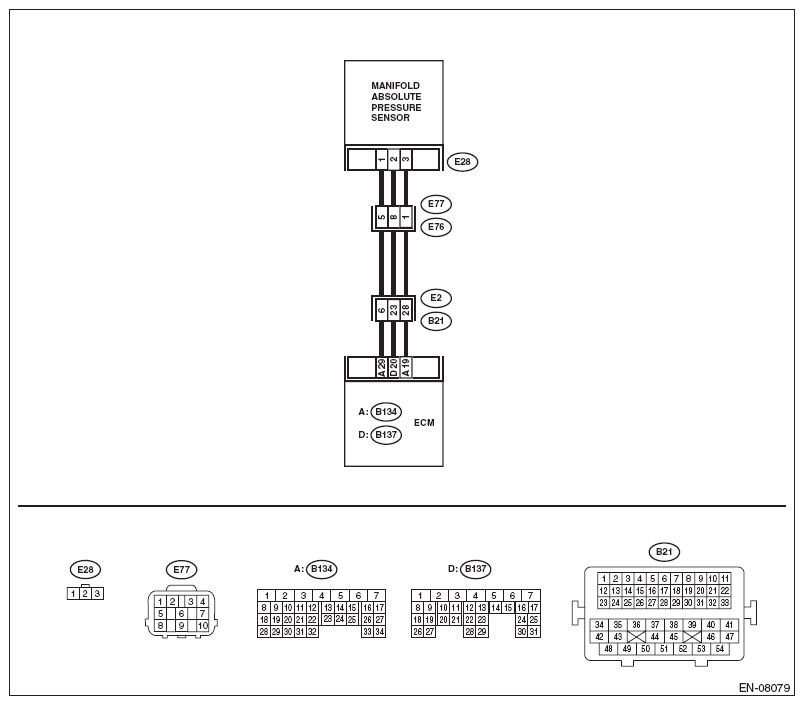

Fig 1: Manifold Absolute Pressure/Barometric Pressure Sensor Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.
