M/T Clutch System: Flywheel: Removal

  1. Remove the transmission assembly. Refer to REMOVAL .
  2. Remove the clutch cover and clutch disc. Refer to REMOVAL .
  3. Attach the ST.

    ST 498497100 CRANKSHAFT STOPPER

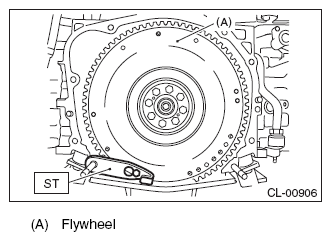

    Fig 1: Removing Flywheel Using ST
    G08582190Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the flywheel and crankshaft position sensor plate.
