Keyless Buzzer: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Remove the clips, and turn over the front side of the mud guard - front.
    Fig 1: Turning Over Front Side Of Mud Guard - Front
    G09484246Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.

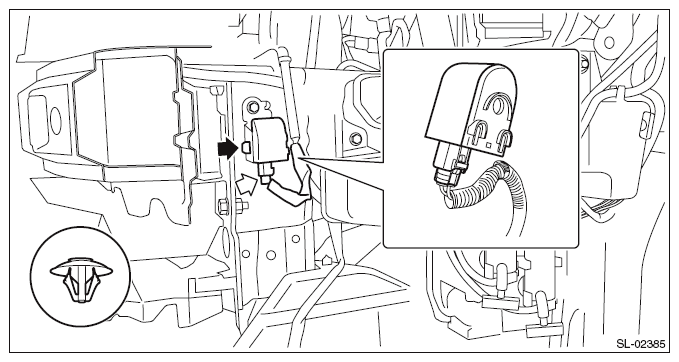

      Fig 2: Identifying Starter Cut Relay From Relay Holder
      G09484702Courtesy of SUBARU OF AMERICA, INC.
