Front Door

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Raise the glass assembly - front door to the top position.
Remove the trim panel - front door. < Ref. to FRONT DOOR , REMOVAL, Door Trim. >
Remove the sealing cover - front door.
CAUTION:
- Carefully remove the butyl tape. Excessive force will easily break the sealing cover - front door.
- If the sealing cover - front door gets broken, replace it with a new part.
- Be careful not to allow the butyl tape to contact any trims and seats because the butyl tape, which has a strong adhesive force, is difficult to remove once it adhered.
1. Disconnect connectors.
2. Carefully remove the butyl tape and turn over the sealing cover - front door within the area where the operation can be performed.

  Fig 1: Identifying Front Outer Handle Sealing Cover
  Courtesy of SUBARU OF AMERICA, INC.
Remove the cover - handle front outer.
Preparation tool:

TORX® T30

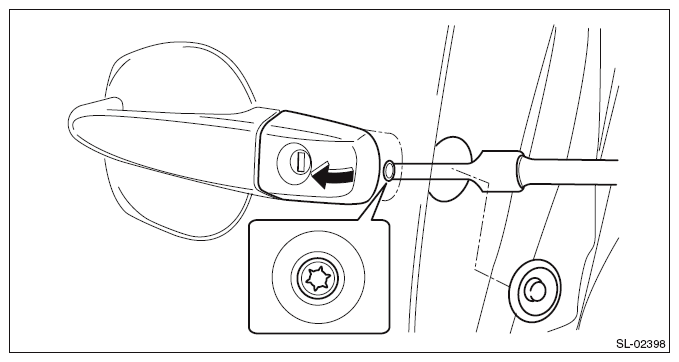

1. Remove the plug at the rear end of the panel assembly - front door.
2. Loosen the TORX® bolt and remove the cover - handle front outer.

  Fig 2: Removing Steering Lock Frame Stopper
  Courtesy of SUBARU OF AMERICA, INC.
Remove the key cylinder (B) from the cover - handle front outer (A), and replace the key cylinder.

Fig 3: Pulling Out Key Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Install each part in the reverse order of removal.
Tightening torque:

Refer to "COMPONENT" of "General Description". < Ref. to DOOR LOCK ASSEMBLY , COMPONENT, General Description. >
