Rear Height Sensor: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Always remove the sensor assembly - headlight beam leveler before removing any parts related to the suspension.
  • Do not apply impact to the sensor assembly - headlight beam leveler or forcibly move the arm. Doing so may cause sensor damage and malfunction.
  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle, and remove the left rear wheel.
  3. Remove the sensor assembly - headlight beam leveler.
    CAUTION: Do not disassemble the sensor and lever.
    1. Disconnect the connector.
    2. Remove the nuts, and remove the sensor assembly - headlight beam leveler.

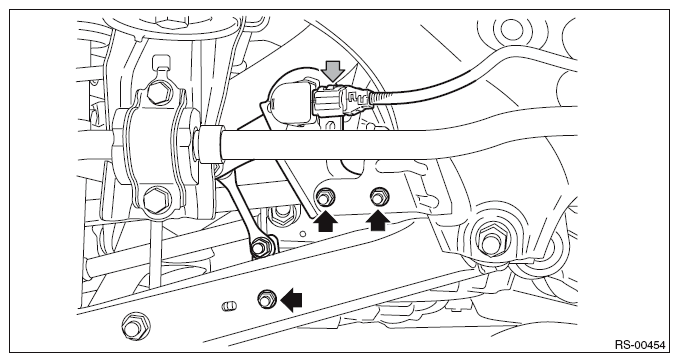

      Fig 1: Locating Rear Height Sensor Connector And Bolts
      G09482977Courtesy of SUBARU OF AMERICA, INC.
