Day Time Running Resistor: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Remove the screw and clips, and turn over the front side of the mud guard - front.

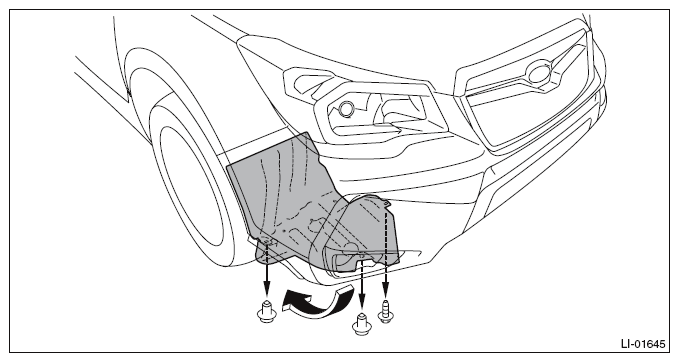

    Fig 1: Removing Front Side Of Mud Guard
    G09484288Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the resistor assembly - daytime running light.
    CAUTION: The resistor may become hot. Be careful not to burn yourself when removing it.
    1. Disconnect the connector.
    2. Remove the bolts, then remove the resistor assembly - daytime running light.

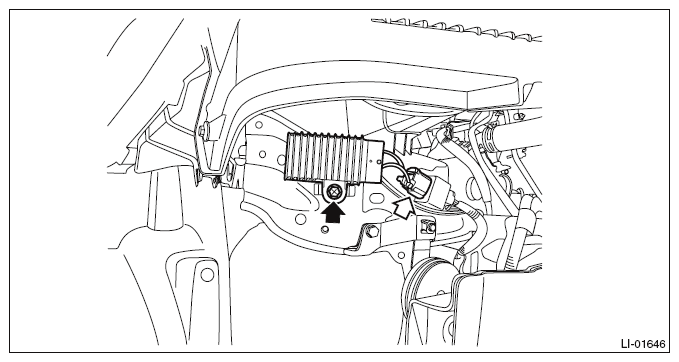

      Fig 2: Locating Daytime Running Light Resistor Assembly Nut
      G09484289Courtesy of SUBARU OF AMERICA, INC.
