Master Cylinder: Installation

1. Replace the seal sub assembly for the master cylinder assembly with a new part.
   CAUTION: Be careful not to install the seal sub assembly in the wrong location.
   Fig 1: Identifying Primary Piston And Seal Sub Assembly

   Courtesy of SUBARU OF AMERICA, INC.
2. Apply grease to the entire inner diameter of the vacuum booster assembly.

   Preparation items:

   Grease: Flourine grease or equivalent

3. Apply grease to the entire outer diameter of the seal sub assembly.

   Preparation items:

   Grease: Fluorine grease or equivalent

4. Apply grease to the entire inner diameter of the seal sub assembly.

   Preparation items:

   Grease: Silicone grease or equivalent

5. Apply grease to the entire circumference on the piston rod of the master cylinder assembly.

   Preparation items:

   Grease: Silicone grease or equivalent

   CAUTION:

   • Apply fluorine grease to the entire circumference. Areas where application was missed may cause rust.
   • Be careful not to mix up application locations of each grease.

   Courtesy of SUBARU OF AMERICA, INC.

   (a)	Master cylinder ASSY
   (b)	Piston rod portion
   (c)	Seal sub ASSY
   (d)	Vacuum booster ASSY
   (e)	Fluorine grease application location
   (f)	Silicone grease application location

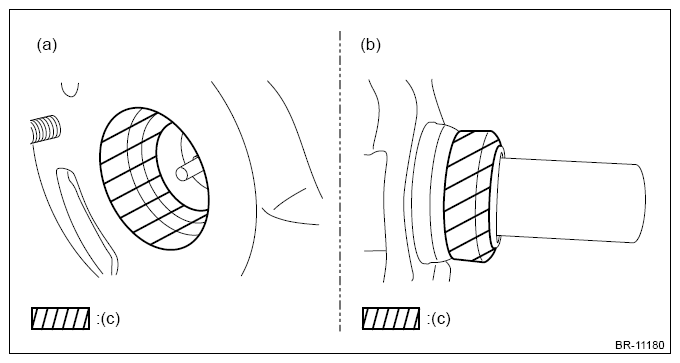

   Courtesy of SUBARU OF AMERICA, INC.

   (a)	Vacuum booster ASSY inner diameter (entire circumference)
   (b)	Seal sub ASSY outer diameter (entire circumference)
   (c)	Grease application location

6. Install the master cylinder assembly.

   Tightening torque:

   13 N.m (1.3 kgf-m, 9.6 ft-lb)

Tightening torque:

Brake pipe flare nut: 19 N.m (1.94 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
