Front Disc Rotor: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle, and then remove the front wheels.
Remove the caliper body assembly from the housing assembly - front axle.
1. Remove the bolt from the brake hose bracket.
2. Remove the mounting bolt, and remove the caliper body assembly.

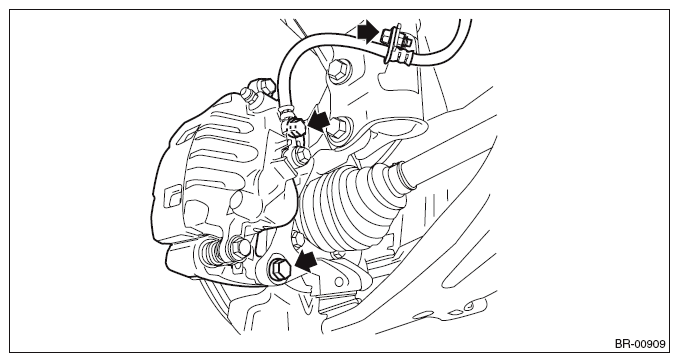

  Fig 1: Locating Mounting Bolt Of Caliper Body Assembly
  Courtesy of SUBARU OF AMERICA, INC.
3. Prepare wiring harnesses etc. to be discarded, and suspend the caliper body assembly from the strut assembly.

  Fig 2: Suspending Caliper Body From Strut Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove the front disc rotor.
NOTE: When the disc rotor is difficult to be removed from the hub unit COMPL - front axle, screw in 8 mm (0.31 in) bolt to the threaded part of the disc rotor (A), and remove the disc rotor.

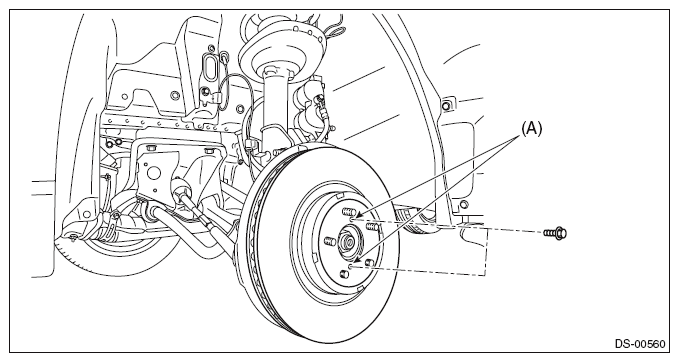

Fig 3: Identifying Disc Rotor Bolts
Courtesy of SUBARU OF AMERICA, INC.
