Manual Transmission Assembly: Installation

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Replace the differential side retainer oil seal. < Ref. to REPLACEMENT , Differential Side Retainer Oil Seal. >
NOTE:
- Be sure to replace the differential side retainer oil seal after removing the front drive shaft.
- When a new oil seal has been installed, replacement is not required.
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER

Fig 1: Installing Differential Side Oil Seal Using Tool
Courtesy of SUBARU OF AMERICA, INC.
Strike and bend the transmission hanger of transmission rear with a rubber hammer etc. so that it gets in contact with the transmission case.
CAUTION: Do not apply excessive load or impact to the transmission case.

Fig 2: Bending Transmission Hanger Of Transmission Rear
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission cushion rubber to the transmission, and tighten the bolt (A).
Install the transmission cushion rubber to the center crossmember, and temporarily tighten the nut (B).
Tightening torque:

Bolt (A)

35 N.m (3.6 kgf-m, 25.8 ft-lb)

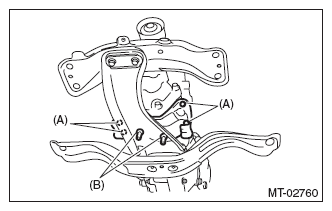

Fig 3: Identifying Transmission Cushion Rubber To Center Crossmember Mounting Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission onto the engine.
1. Lift up the transmission gradually using a transmission jack.
2. Engage at the spline section.
  NOTE: Be careful not to hit the main shaft against the clutch cover.
While raising the transmission jack, loosen the turnbuckle of the ST, and set the engine unit to the original position.
Tighten the mounting bolts for front crossmember and rear crossmember.
Tighten the transmission cushion rubber mounting nut.
Tightening torque:

T1: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

T2: 140 N.m (14.3 kgf-m, 103.3 ft-lb)

T3: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

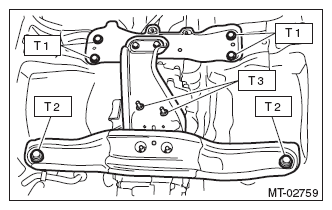

Fig 4: Identifying Transmission Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Take out the transmission jack.
Tighten the bolts and nuts which hold the lower side of transmission to the engine.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

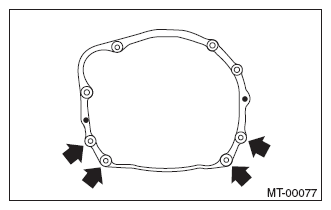

Fig 5: Locating Lower Side Of Transmission To Engine Mounting Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Install the starter. < Ref. to INSTALLATION , Starter. >
Tighten the bolts which hold the upper side of the transmission to the engine.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 6: Locating Upper Side Of Transmission To Engine Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.

Fig 7: Installing Engine Support And Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the ground cable.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 8: Identifying Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 9: Identifying Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Install the ST to the transmission, and then install the front drive shaft to the transmission.
ST 28399SA010 OIL SEAL PROTECTOR

Fig 10: Installing Front Drive Shaft To Transmission Using Tool
Courtesy of SUBARU OF AMERICA, INC.
Insert the front arm ball joint into the housing lower part, and tighten the mounting bolt.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

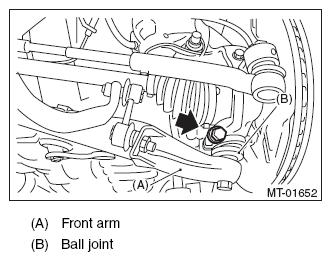

Fig 11: Locating Front Arm Ball Joint Into Housing Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Attach the stabilizer link to the front arm.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

Fig 12: Locating Stabilizer Link To Front Arm Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the MT gear shift cable and MT gear select cable to MT gear shift lever. < Ref. to INSTALLATION , MT Gear Shift Lever. >
CAUTION:
- Do not bend MT gear shift cable and MT gear select cable at a sharp angle.
- If the MT gear select cable is removed from the selector lever COMPL on the transmission side, replace with new MT gear select cable.
Install the propeller shaft. < Ref. to INSTALLATION , Propeller Shaft. >
Install the hanger bracket to the transmission.
Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

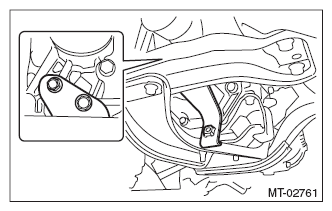

Fig 13: Locating Hanger Bracket To Transmission Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 14: Identifying Center Exhaust Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission under cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

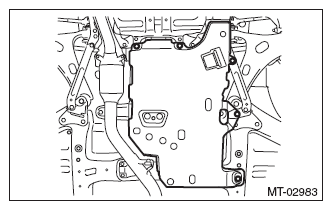

Fig 15: Identifying Transmission Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. < Ref. to INSTALLATION , Center Exhaust Pipe. >
Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Install the operating cylinder.
Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

Fig 16: Locating Cylinder Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission radio ground cord terminal.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Fig 17: Identifying Transmission Radio Ground Cord Terminal
Courtesy of SUBARU OF AMERICA, INC.
Install the engine hanger rear.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)
Connect the engine harness connector, then attach the harness bracket.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

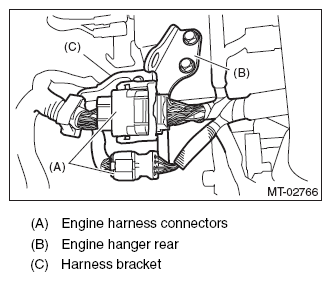

Fig 18: Identifying Engine Hanger Rear, Connector And Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the following connectors and secure the clip on the bracket.

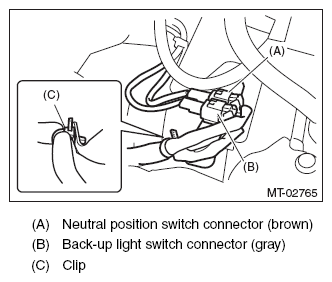

Fig 19: Identifying Neutral Position Switch Connector, Back-Up Light Switch Connector And Clip
Courtesy of SUBARU OF AMERICA, INC.
Pour in transmission gear oil and check the oil level. < Ref. to TRANSMISSION GEAR OIL . >
Install the air intake boot. < Ref. to INSTALLATION , Air Intake Boot. >
Connect the battery ground terminal.
