Wiper Blade: Assembly: Rear

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

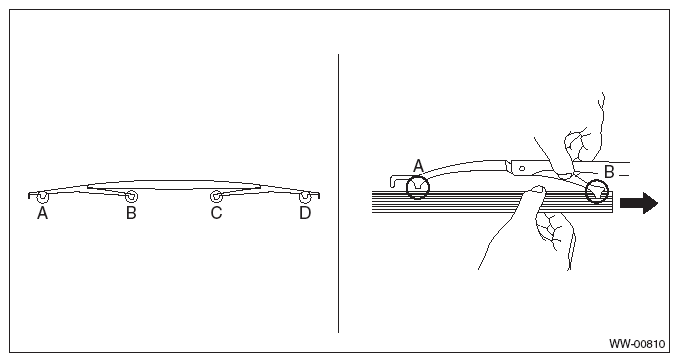

Insert the rubber assembly - rear wiper into claw (B).

Fig 1: Inserting Rubber Assembly - Rear Wiper Into Claw
Courtesy of SUBARU OF AMERICA, INC.

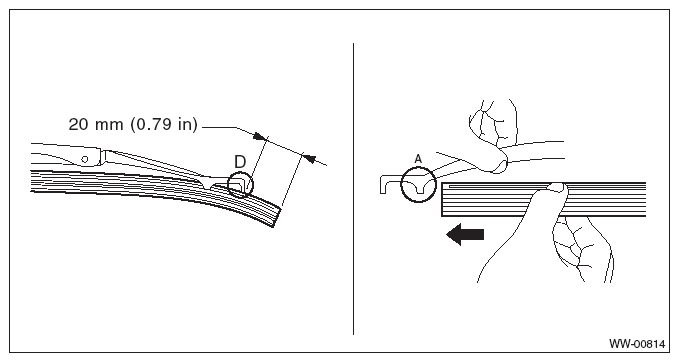

Insert the rubber assembly - rear wiper until its top end protrudes approx. 20 mm (0.79 in) from stopper (D).
Insert the rubber assembly - rear wiper into claw (A).

Fig 2: Inserting Rubber Assembly - Rear Wiper Into Claw
Courtesy of SUBARU OF AMERICA, INC.
