Relay and Fuse: Location
WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

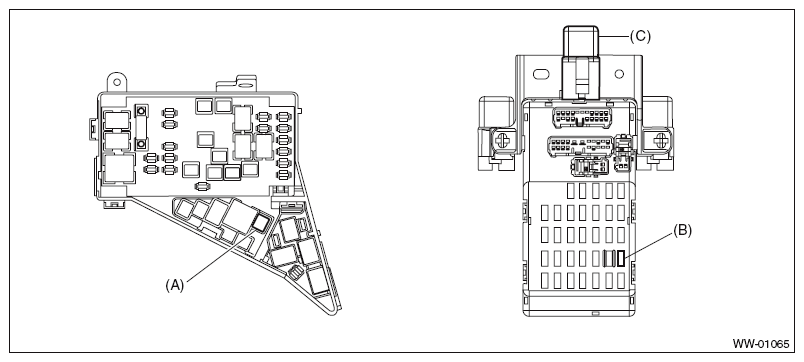

| Main fuse box | Fuse 30 A (wiper) | (A) |
| Relay & fuse box | Fuse 7.5 A (wiper) | (B) |
| Relay holder | Wiper relay | (C) |
NOTE:
For other related fuses, refer to the wiring diagram. < Ref. to
POWER SUPPLY CIRCUIT
. >
