Rear Wiper Motor: Installation

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install each part in the reverse order of removal.
CAUTION: For installation of the rod - power rear gate, refer to "INSTALLATION", "Power Rear Gate Rod" in the "POWER REAR GATE" section and observe the precautions for installation. < Ref. to INSTALLATION , Power Rear Gate Rod. >

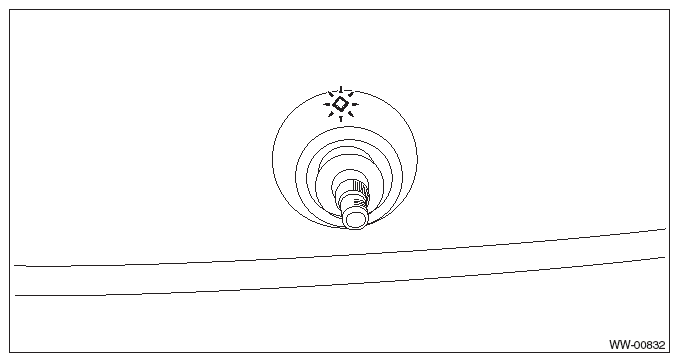

Check that the mark on the cap - pivot wiper faces up, as shown in the figure.

Fig 1: Identifying Mark On Cap - Pivot Wiper Faces Up
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "General Description". < Ref. to REAR WIPER , COMPONENT, General Description. >
