Rear Wiper Arm: Installation
WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.
- Operate the rear wiper once.

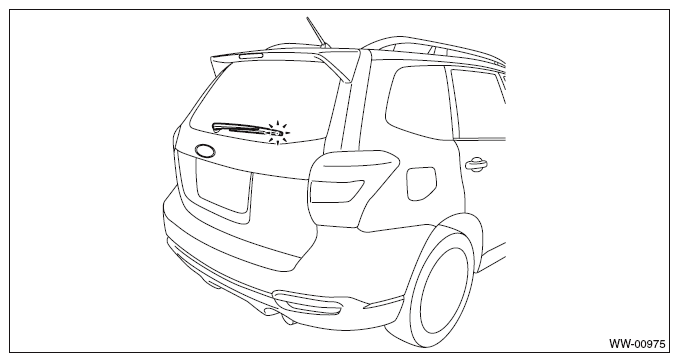

- Align the blade assembly - rear wiper with the marking on the glass, and then tighten the nut to the specified torque.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque:
8 N.m (0.82 kgf-m, 5.9 ft-lb)
- Operate the wiper to check whether the wiper blade aligns with the point mark. If not, perform installation over again.
