Combination Switch (Wiper): Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the cover assembly - column.
    1. Release the screws and claws.
    2. Remove the cap - key cylinder (a). (Model with keyless access)
    3. Remove the cover assembly - column UPR and the cover assembly - column LWR.

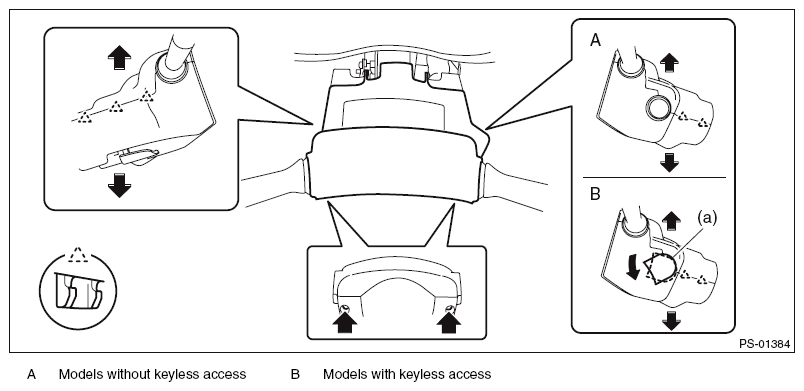

      Fig 1: Removing Cover Assembly - Column
      G09484309Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the switch assembly - combination wiper select.
    1. Disconnect the connector.
    2. Release the claws, and pull out the switch assembly - combination wiper select.
      CAUTION: Do not press the claws with excessive force. They may be damaged.
      Fig 2: Removing Switch Assembly - Combination Wiper Select
      G08314999Courtesy of SUBARU OF AMERICA, INC.
