Communication For Initializing Impossible: Wiring Diagram

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Headlight beam leveler system < Ref. to WIRING DIAGRAM , Headlight Beam Leveler System. >

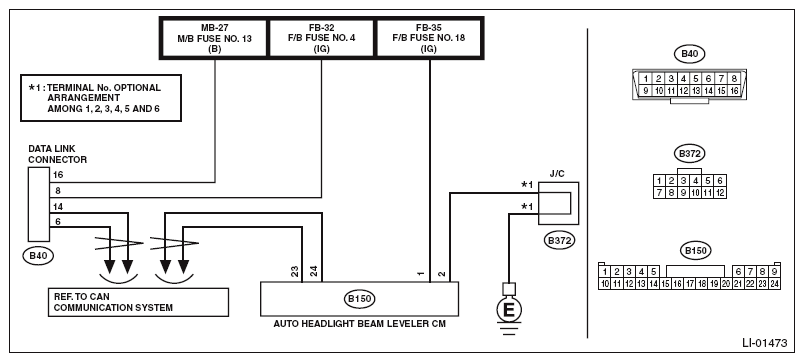

Fig 1: Headlight Beam Leveler System - Wiring Diagram
G09484296Courtesy of SUBARU OF AMERICA, INC.
Step Check Yes No
1 CHECK OTHER COMMUNICATION.
Communicate with the system other than the auto headlight beam leveler CM using the Subaru Select Monitor.		 Is the communication to other control module possible? Go to step 2  . Perform the "COMMUNICATION FOR INITIALIZING IMPOSSIBLE " of LAN system. < Ref. to COMMUNICATION FOR INITIALIZING IMPOSSIBLE , Subaru Select Monitor. >
2 CHECK LAN SYSTEM.
Inspect LAN system. < Ref. to PROCEDURE , Basic Diagnostic Procedure. >		 Is there any fault? Perform the inspection according to the diagnosis for LAN system. Go to step 3  .
3 CHECK FOR POOR CONTACT.
  1. Turn the ignition switch to OFF.
  2. Disconnect the auto headlight beam leveler CM connector.
  3. Connect the disconnected connectors.
  4. Communicate with the auto headlight beam leveler CM using the Subaru Select Monitor.
 Is communication possible? It is possible that temporary poor communication occurs. Replace the auto headlight beam leveler CM. < Ref. to AUTO HEADLIGHT BEAM LEVELER CONTROL MODULE . >
