Relay and Fuse: Location

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

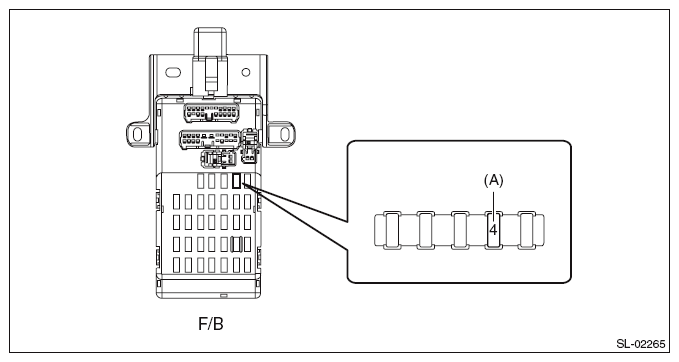

Fig 1: Identifying Relay And Fuse Box

Courtesy of SUBARU OF AMERICA, INC.

Relay & fuse box

Fuse 10 A (power rear gate control module)

(A)

NOTE: For other related fuses, refer to the wiring diagram. < Ref. to POWER SUPPLY CIRCUIT . >
