Power Rear Gate Drive Unit: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the rod - power rear gate. Refer to REMOVAL
  3. Remove the trim panel - rear apron and the trim panel - rear quarter pillar UPR. < Ref. to REMOVAL , Rear Quarter Trim. >
  4. Remove the power rear gate drive unit (PRG D/U).
    1. Release the claws, and disconnect the connector.
    2. Remove the bolts, release the claw, and then remove the power rear gate drive unit (PRG D/U).

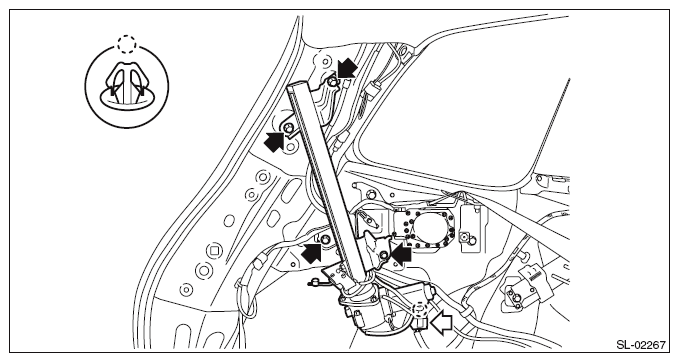

      Fig 1: Removing Power Rear Gate Drive Unit (PRG D/U)
      G09485097Courtesy of SUBARU OF AMERICA, INC.
