Turbo model

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Example Of LAN System Diagram (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

When (13) (steering angle sensor vicinity) is open

NOTE: DTC is not detected except in VDC.

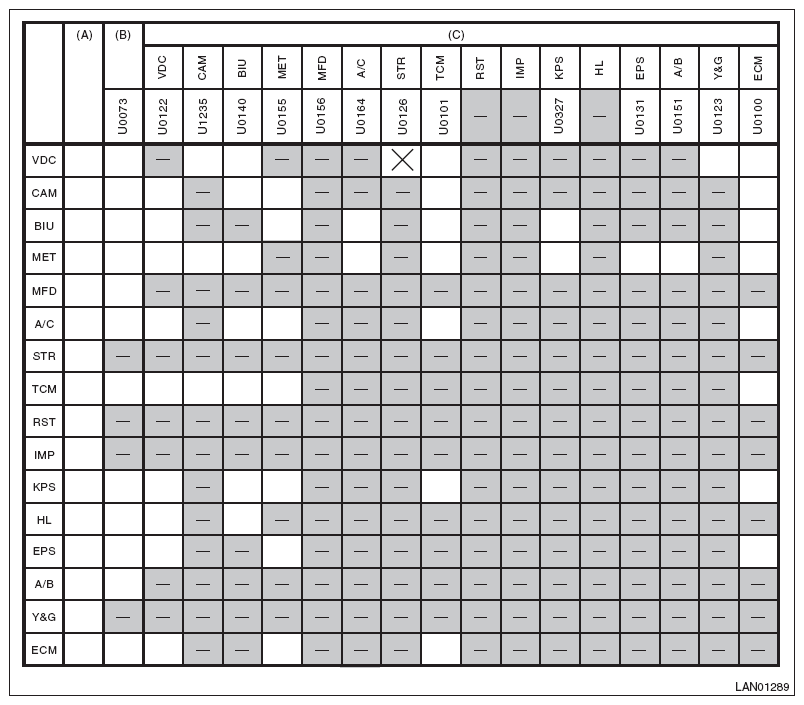

Fig 2: Example Of DTC Data Not Received (Steering Angle Sensor Vicinity)

Courtesy of SUBARU OF AMERICA, INC.

When (15) (remote engine start Control Module vicinity) is open

NOTE: The remote engine starter does not operate while no DTC is detected.

Fig 3: Example Of DTC Data Not Received (Remote Engine Start Control Module Vicinity)

Courtesy of SUBARU OF AMERICA, INC.

When (20) (yaw rate & G sensor vicinity) is open

NOTE: DTC is not detected except in VDC.

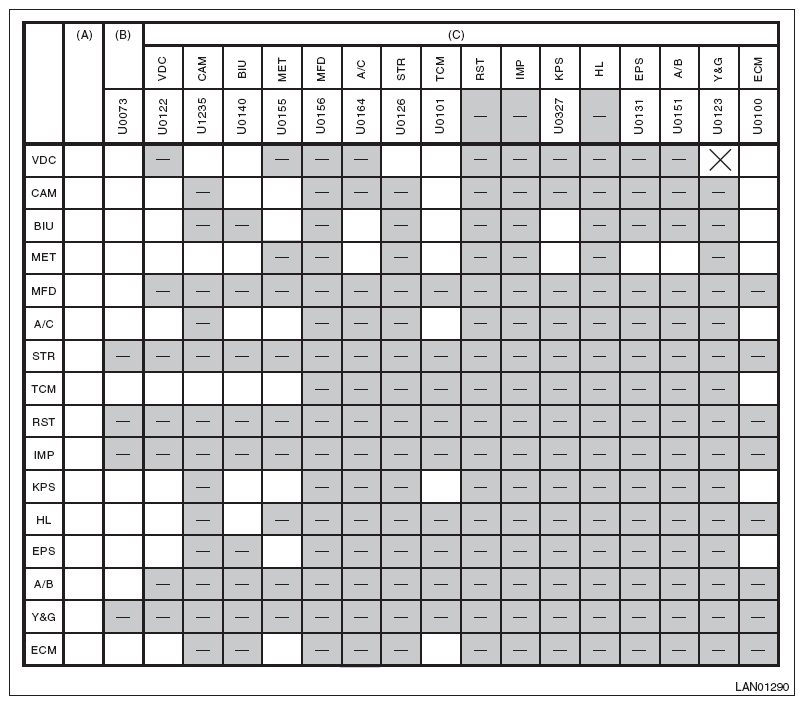

Fig 4: Example Of DTC Data Not Received (Yaw Rate & G Sensor Vicinity)

Courtesy of SUBARU OF AMERICA, INC.
