Side Airbag Sensor

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not reuse mounting bolts and nuts.

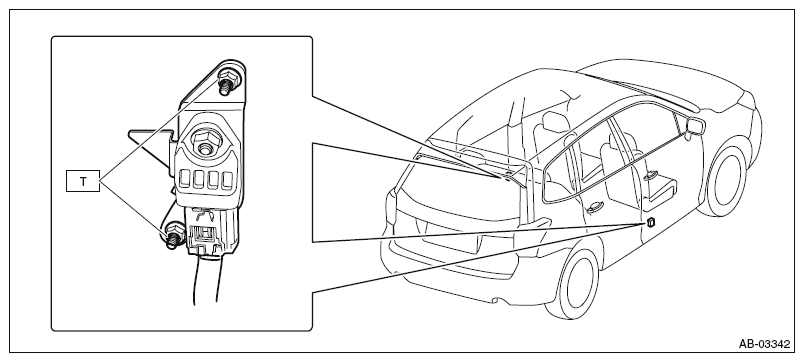

Fig 1: Identifying Side Airbag Sensor Mounting Bolt
G09483886Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
