Airbag Control Module

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not reuse mounting bolts and nuts.

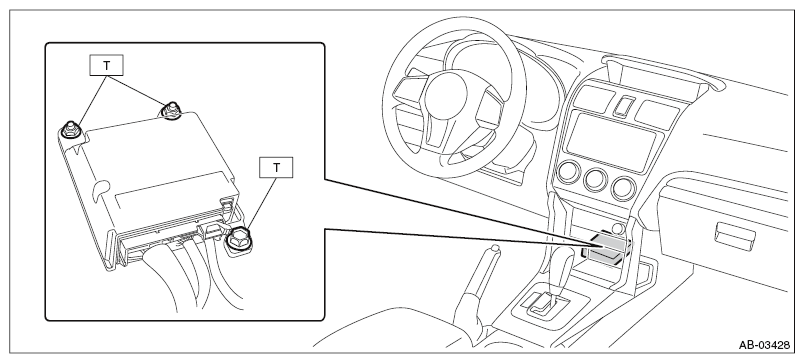

Fig 1: Airbag Control Module Components Location
G09483883Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: 25 N.m (2.55 kgf-m, 18.4 ft-lb)
