Tail/Stop Light Bulb: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the light assembly - rear combination.
    CAUTION: Be careful not to damage the clips.
    1. Release the bolts and clips, then pull out the light assembly - rear combination to the vehicle rear.
    2. Disconnect the connector and remove the light assembly - rear combination.
      Fig 1: Removing Rear Combination Light Assembly
      G09484254Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb sockets and bulbs.

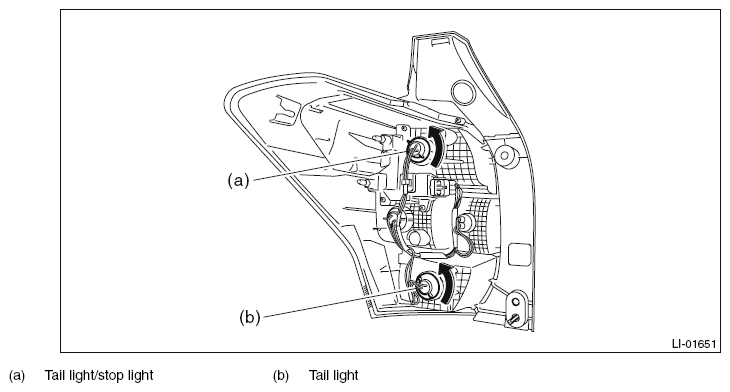

    Fig 2: Removing Bulb Sockets And Bulbs
    G09484256Courtesy of SUBARU OF AMERICA, INC.
