Relay and Fuse: Location
WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

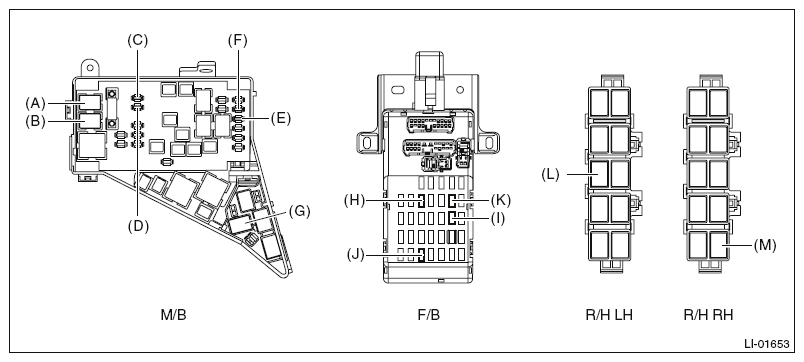

| Main fuse box | Headlight relay (HI) | (A) |
| Headlight relay (LO) | (B) | |
| Fuse 15 A (high beam LH/RH) | (C) | |
| Fuse 30 A (combination light LH/RH) | (D) | |
| Fuse 15A (turn signal & hazard unit, key illumination) | (E) | |
| Fuse 15A (tail and illumination relay, daytime running light relay) | (F) | |
| Daytime running light relay | (G) | |
| Relay & fuse box | Fuse 15A (stop light and brake switch) | (H) |
| Fuse 10A (inhibitor switch, back-up light switch, Auto Headlight Beam Leveler Control Module) | (I) | |
| Fuse 15A (front fog light relay) | (J) | |
| Fuse 7.5A (turn signal & hazard unit) | (K) | |
| Relay holder LH | Tail & illumination relay | (L) |
| Relay holder RH | Front fog light relay | (M) |
NOTE:
For other related fuses, refer to the wiring diagram. < Ref. to
POWER SUPPLY CIRCUIT
. >
