License Plate Light: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the license plate light.
    1. Release the claws and pull out the license plate light.
    2. Disconnect the connector and remove the bulb socket and bulb from the license plate light.

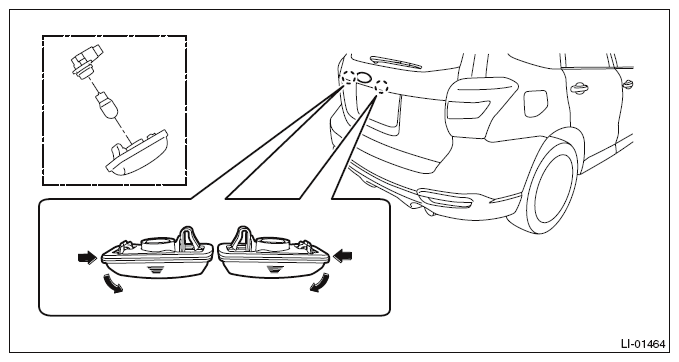

      Fig 1: Removing Bulb Socket And Bulb From License Plate Light
      G09484261Courtesy of SUBARU OF AMERICA, INC.
