When Removing RH Side

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Because the headlight system uses high voltage, be careful not to perform work with wet hands. There is a possibility of electrical shock.

CAUTION: The HID type uses very high voltages for the lighting circuit. Make sure that the power supply is turned OFF before working.

Disconnect the ground cable from battery.
Remove the clips and remove the air intake duct (rear).

Fig 1: Locating Air Intake Duct Clips (Rear)
Courtesy of SUBARU OF AMERICA, INC.
Detach the flange section on the right side of the bumper face - front.
1. Remove each bumper clip.

  Fig 2: Locating Bumper Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Apply protective tape (A) to the light assembly - head.
3. Release the clips, and while pushing up the lower side (a) of the bumper face - front, remove from (b) to (e).
  CAUTION: Do not pull forcibly. It may damage the flange sections of the bumper face - front.

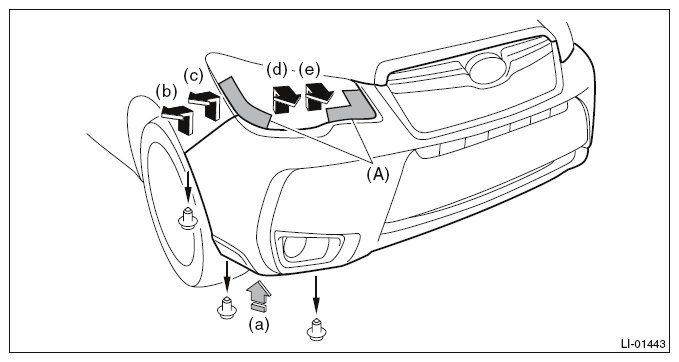

  Fig 3: Applying Protective Tape To Headlight Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove the light assembly - head.
CAUTION: Be careful not to damage the light assembly - head, fender COMPL - front, and bumper face - front.
1. Disconnect connectors.
2. Remove the bolts and clips, and remove the light assembly - head.

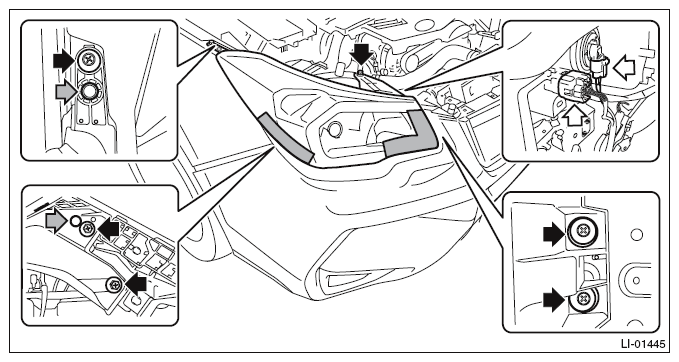

  Fig 4: Locating Headlight Assembly Clips And Screws
  Courtesy of SUBARU OF AMERICA, INC.
