When Removing Both Side

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Because the headlight system uses high voltage, be careful not to perform work with wet hands. There is a possibility of electrical shock.
CAUTION: The HID type uses very high voltages for the lighting circuit. Make sure that the power supply is turned OFF before working.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the air intake duct (rear).
    Fig 1: Locating Air Intake Duct Clips (Rear)
    G09484217Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bumper face - front. < Ref. to REMOVAL , Front Bumper. >
  4. Remove the light assembly - head.
    1. Disconnect connectors.
    2. Remove the bolts and clips, and remove the light assembly - head.

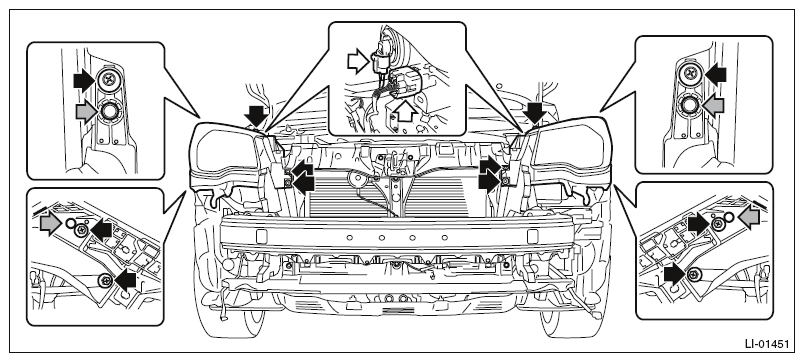

      Fig 2: Locating Headlight Assembly Connectors, Bolts And Clips
      G09484225Courtesy of SUBARU OF AMERICA, INC.
