Front Fog Light Bulb: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the screw and clips, and turn over the front side of the mud guard - front.
    Fig 1: Removing Front Fog Light Assembly Screw And Clips
    G09484246Courtesy of SUBARU OF AMERICA, INC.
  3. From the bottom of the bumper face - front, remove the front fog light bulb.
    1. Disconnect the connector.
    2. Remove the bulb.

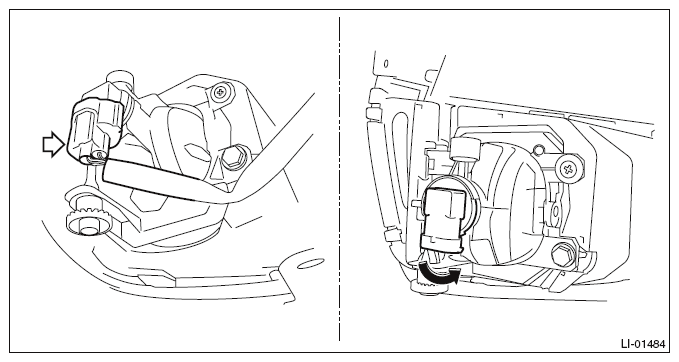

      Fig 2: Removing Front Fog Light Bulb
      G09484252Courtesy of SUBARU OF AMERICA, INC.
