Clearance/Parking Light Bulb: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Since the LED type parking light cannot be disassembled, it cannot be removed.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the air intake duct (rear). (When removing the parking light bulb RH)

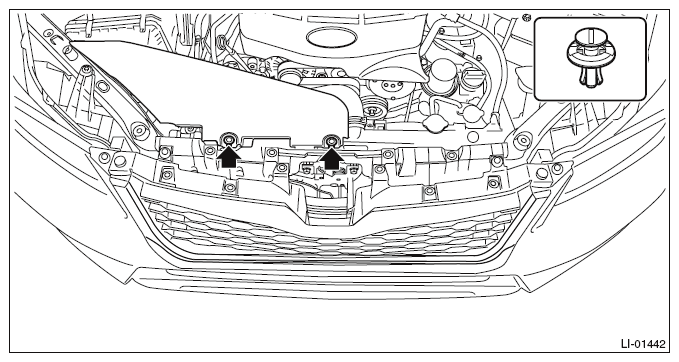

    Fig 1: Locating Air Intake Duct Clips (Rear)
    G09484217Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bulb socket and parking light bulb.

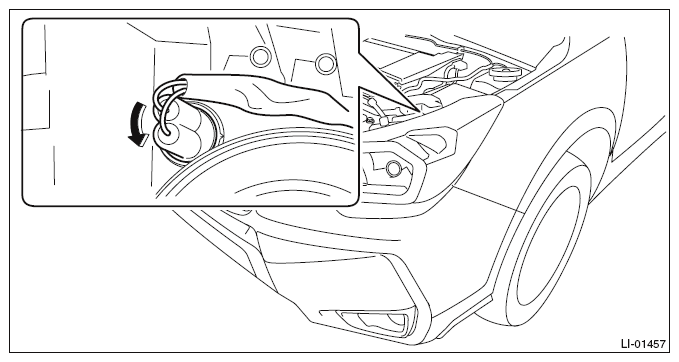

    Fig 2: Removing Bulb Socket And Parking Light Bulb
    G09484244Courtesy of SUBARU OF AMERICA, INC.
