Operating Cylinder: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Clutch fluid spilled on the vehicle body will harm the paint surface; wash it off with water and wipe clean quickly if spilled.

Remove the clip (A) from the air intake boot.
Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
Loosen the clamp (C) which connects the air intake boot and throttle body.

Fig 1: Identifying Clamp And Clip Of Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Fig 2: Identifying Air Intake Boot From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the clutch hose from the operating cylinder.
CAUTION: Cover the hose joint to prevent the clutch fluid from flowing out.

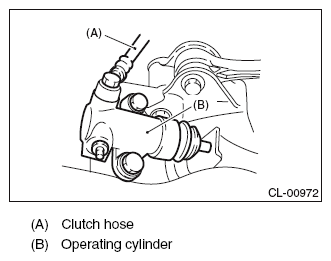

Fig 3: Identifying Clutch Hose And Operating Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from the transmission.

Fig 4: Identifying Operating Cylinder From Transmission
Courtesy of SUBARU OF AMERICA, INC.
