Check Security Indicator Light Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Immobilizer system < Ref. to WIRING DIAGRAM , Immobilizer System. >

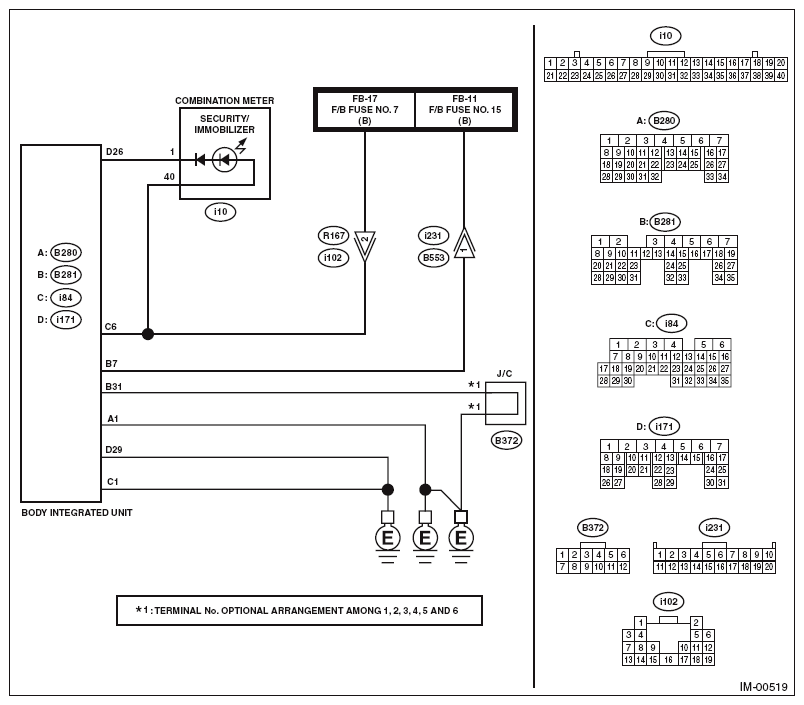

Fig 1: Check Security Indicator Light Circuit - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK FUSE. Remove the ignition key from ignition switch. Check the fuse (M/B No. 8).	Is the fuse OK?	Go to step 2 .	Replace the fuse. If the replaced fuse blows out easily, repair the short circuit in the harness between the fuse and body integrated unit.
2 CHECK SECURITY INDICATOR LIGHT. Disconnect the connector from body integrated unit. Connect the resistor (100 Ω) between the body integrated unit connector terminal (i171) No. 26 and chassis ground.	Does the security indicator light illuminate?	Go to step 3 .	Go to step 5 .
3 CHECK BODY INTEGRATED UNIT GROUND CIRCUIT. Measure the resistance between the body integrated unit connector terminal and chassis ground. Connector & terminal (B280) No. 1 - Chassis ground: (B281) No. 31 - Chassis ground: (i84) No. 1 - Chassis ground: (i171) No. 29 - Chassis ground:	Is the resistance less than 10 Ω?	Go to step 4 .	Repair the open circuit of the body integrated unit ground circuit.
4 CHECK BODY INTEGRATED UNIT POWER SUPPLY CIRCUIT. Measure the voltage between the body integrated unit connector terminal and chassis ground. Connector & terminal (B281) No. 7 (+) - Chassis ground (-): (i84) No. 6 (+) - Chassis ground (-):	Is the voltage 10 V or more?	Replace the body integrated unit. < Ref. to BODY INTEGRATED UNIT . >	Check the harness for open or short circuit between body integrated unit and fuse.
5 CHECK COMBINATION METER CIRCUIT. Remove the combination meter. < Ref. to COMBINATION METER . > Measure the voltage between combination meter connector terminal and chassis ground. Connector & terminal (i10) No. 40 (+) - Chassis ground (-):	Is the voltage 10 V or more?	Go to step 6 .	Check for an open or short circuit in the harness between the combination meter and fuse.
6 CHECK COMBINATION METER CIRCUIT. Measure the resistance between the body integrated unit connector terminal and combination meter connector terminal. Connector & terminal (i171) No. 26 - (i10) No. 1:	Is the resistance less than 10 Ω?	LED bulb is defective. Replace the combination meter case assembly. < Ref. to DISASSEMBLY , Combination Meter. >	Repair the harness or connector.
