Relay and Fuse: Location

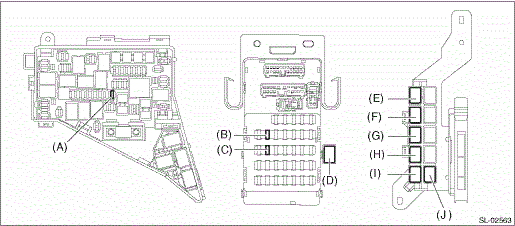

Fig 1: Identifying Relay And Fuse Location

Courtesy of SUBARU OF AMERICA, INC.

Fuse 20A (K/L)		(A)
Relay & fuse box	Fuse 7.5A (K/L, K/A)	(B)
	Fuse 7.5 A (K/A)	(C)
	Starter relay (K/L)	(D)
Smart module bracket	Accessory relay (push button start) (K/A)	(E)
	IG relay 2 (push button start) (K/A)	(F)
	IG relay 1 (push button start) (K/A)	(G)
	Starter relay (push button start) (K/A)	(H)
	Starter relay (K/A)	(I)
	Starter cut relay (K/A)	(J)

NOTE: For other related fuses, refer to the wiring diagram. See appropriate SYSTEM WIRING DIAGRAM article.
