Rear Inner Remote: Removal

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel - rear door. < Ref. to REAR DOOR , REMOVAL, Door Trim. >
  2. Remove the screw, and remove the remote assembly - door.

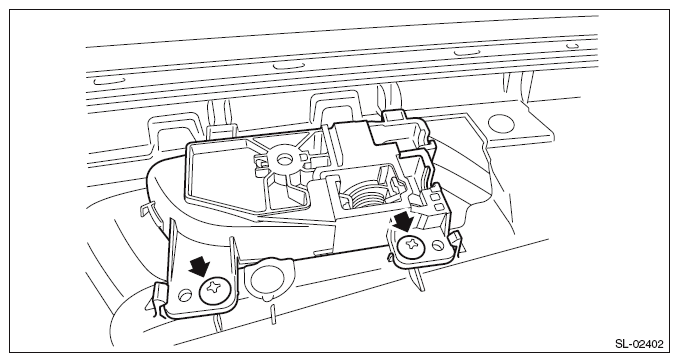

    Fig 1: Locating Rear Inner Remote Screws
    G09484650Courtesy of SUBARU OF AMERICA, INC.
