Relay and Fuse: Location

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

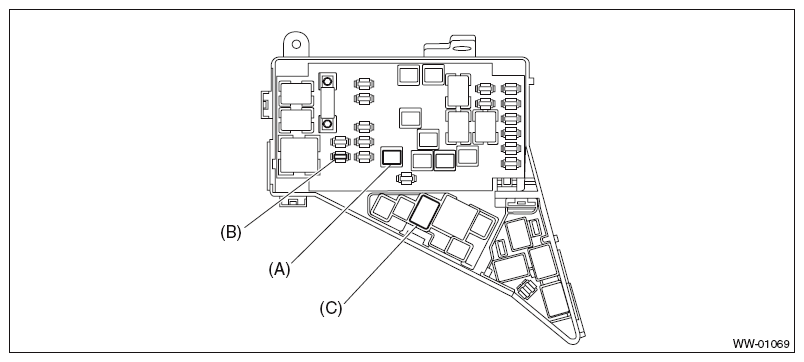

Fig 1: Identifying Fuses And Brake Light Relay

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Fuse 50A (VDC CM & H/U)	(A)
	Fuse 30A (VDC CM & H/U)	(B)
	Brake light relay	(C)

NOTE: For other related fuses, refer to the wiring diagram. < Ref. to POWER SUPPLY CIRCUIT . >
