Propeller Shaft: Inspection

Check the propeller shaft with the propeller shaft installed to the vehicle.

1. Remove the center exhaust pipe, rear exhaust pipe, and muffler.
   • Center exhaust pipe:
     • Turbo model: < Ref. to REMOVAL , Center Exhaust Pipe. >
     • Non-turbo model: < Ref. to REMOVAL , Center Exhaust Pipe. >
   • Rear exhaust pipe:
     • Turbo model: < Ref. to REMOVAL , Rear Exhaust Pipe. >
     • Non-turbo model: < Ref. to REMOVAL , Rear Exhaust Pipe. >
   • Muffler:
     • Turbo model: < Ref. to REMOVAL , Muffler. >
     • Non-turbo model: < Ref. to REMOVAL , Muffler. >
2. Remove the bolts to remove the front heat shield cover.

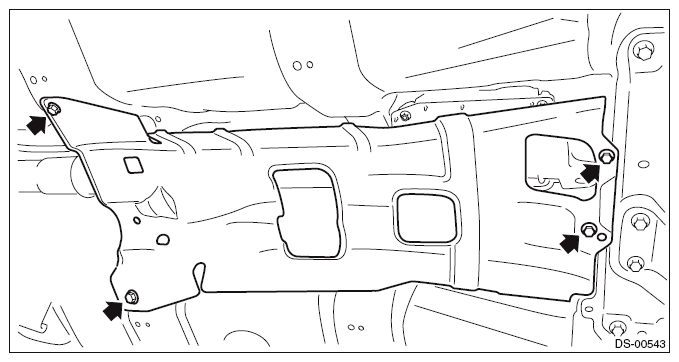

   Fig 1: Locating Bolts Of Front Heat Shield Cover

   Courtesy of SUBARU OF AMERICA, INC.
3. Check the propeller shaft mounting bolt for looseness.
   1. Yoke flange mounting bolts which connect to the rear differential
   2. Center bearing bracket mounting bolts

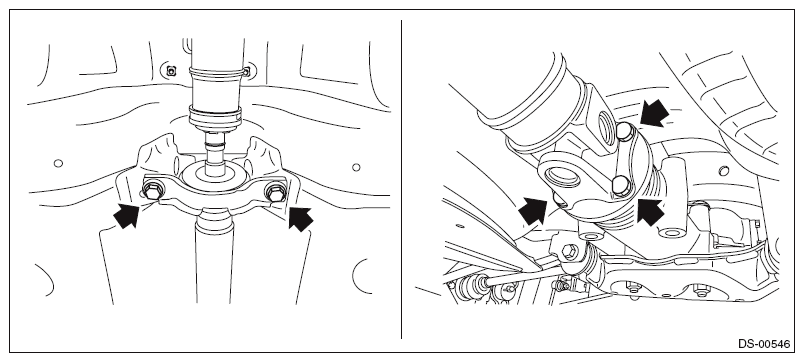

      Fig 2: Locating Center Bearing Bracket Mounting Bolts

      Courtesy of SUBARU OF AMERICA, INC.
4. Check the spline and bearing for the propeller shaft.
   1. Turn the propeller shaft by hand to check if abnormal free play exists at splines.
   2. Also move yokes to check if abnormal free play exists at spiders and bearings.

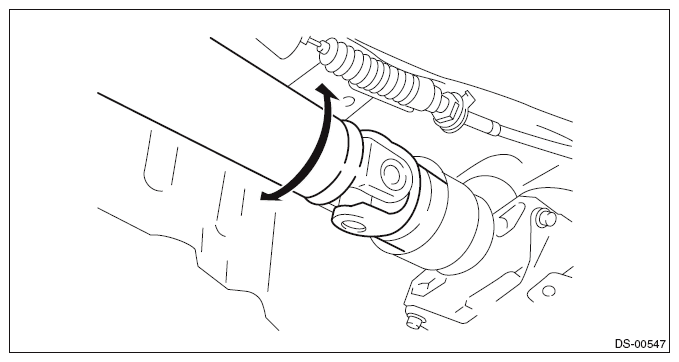

      Fig 3: Checking Spline And Bearing For Propeller Shaft

      Courtesy of SUBARU OF AMERICA, INC.
5. Measure the deflection of the propeller shaft.
   1. Set the dial gauge (B) with its indicator stem at the center of the propeller shaft (A).
   2. Turn the propeller shaft (A) slowly by hands to check for runout of the propeller shaft.
      Fig 4: Measuring Deflection Of Propeller Shaft Using Tool

      Courtesy of SUBARU OF AMERICA, INC.

      Runout:

      Limit: 0.6 mm (0.024 in)

6. Check the center bearing for free play.

   Move the propeller shaft near the center bearing up, down, left, right by hand, to check for any abnormal free play of the bearings.

   Fig 5: Checking Center Bearing For Free Play

   Courtesy of SUBARU OF AMERICA, INC.
7. Replace the propeller shaft assembly if faulty is found in the inspection.
