Relay and Fuse: Location

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

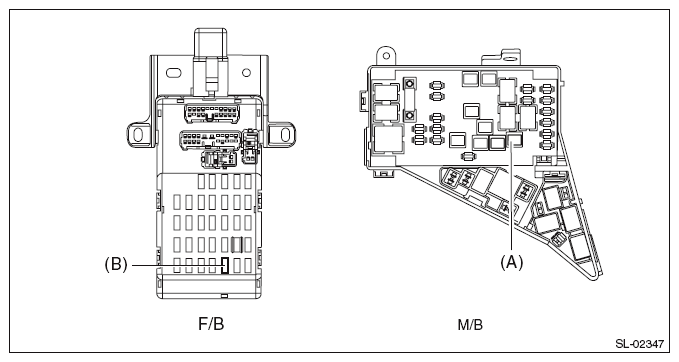

Fig 1: Identifying Main Fuse Box Fuse 50 And Relay & Fuse Box

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box	Fuse 50 A (keyless access CM)	(A)
Relay & fuse box	Fuse 7.5 A (body integrated unit)	(B)

NOTE: For other related fuses, refer to the wiring diagram. < Ref. to POWER SUPPLY CIRCUIT . >
