Wiper Blade: Disassembly: Front

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Pull side (A) of the wiper rubber stopper, and remove the rubber assembly - windshield wiper from the blade assembly - windshield wiper.

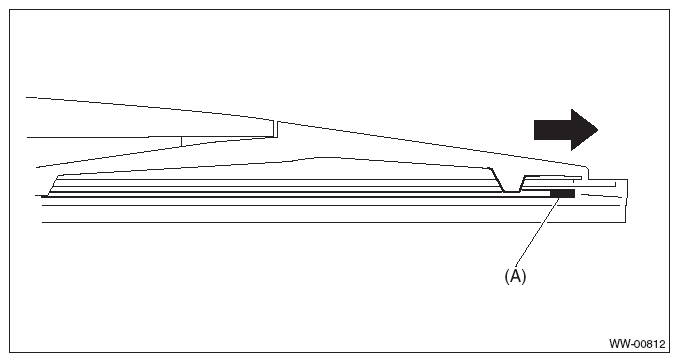

Fig 1: Removing Rubber Assembly - Windshield Wiper From Blade Assembly (Front)
G08316528Courtesy of SUBARU OF AMERICA, INC.
