Wiper Blade: Assembly: Front

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Insert the rubber assembly - windshield wiper onto the blade - windshield wiper so that the stopper is in the position shown in the figure.

Fig 1: Locating Wiper Blade (Front)
Courtesy of SUBARU OF AMERICA, INC.

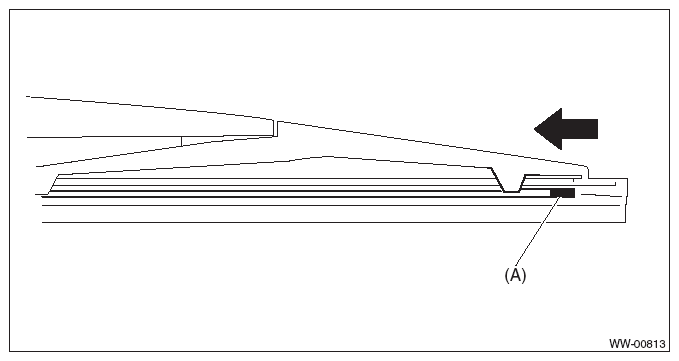

Make sure the rubber assembly - windshield wiper is securely fastened to the pull stopper (A).

Fig 2: Identifying Wiper Blade Stopper
Courtesy of SUBARU OF AMERICA, INC.
