Front Wiper Arm: Installation

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the arm assembly - windshield wiper.
1. Assemble the arm assembly - windshield wiper so that the blade assembly - windshield wiper is aligned to the ceramic print point mark of the windshield glass.

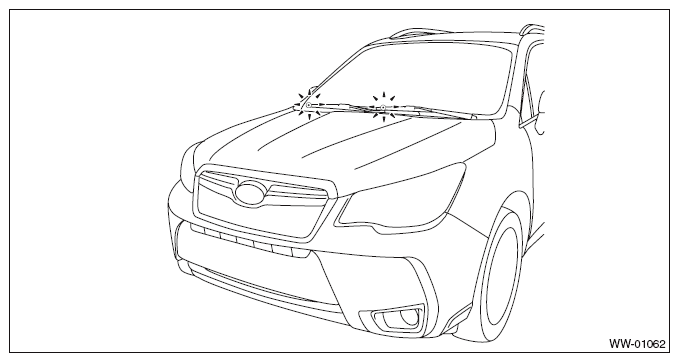

  Fig 1: Identifying Ceramic Print Point Alignment Mark Of Windshield Glass
  Courtesy of SUBARU OF AMERICA, INC.
2. Tighten the arm assembly - windshield wiper to specified torque and install the cap.
  Tightening torque:

  22 N.m (2.24 kgf-m, 16.2 ft-lb)

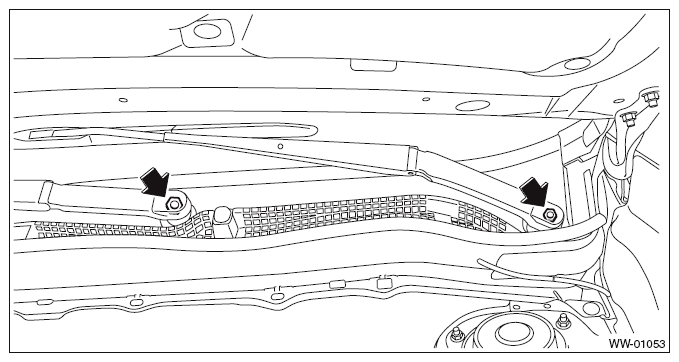

  Fig 2: Locating Front Wiper Arm Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Check the position of windshield wiper. < Ref. to ADJUSTMENT , Front Wiper Arm. >
