Rear Differential Front Member: Installation

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear differential front member, and temporarily attach and tighten a new self-locking nut.

Fig 1: Identifying Rear Differential Front Member Self-Locking Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission jack.
Tighten the self-locking nut.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 110 N.m (11.2 kgf-m, 81.1 ft-lb)

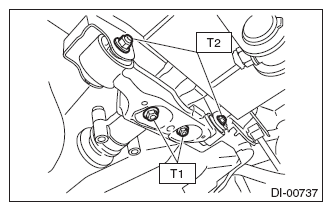

Fig 2: Identifying Rear Differential (T-Type) Self-Locking Nut
Courtesy of SUBARU OF AMERICA, INC.
