Components With Torque Specifications

• Except for STI model

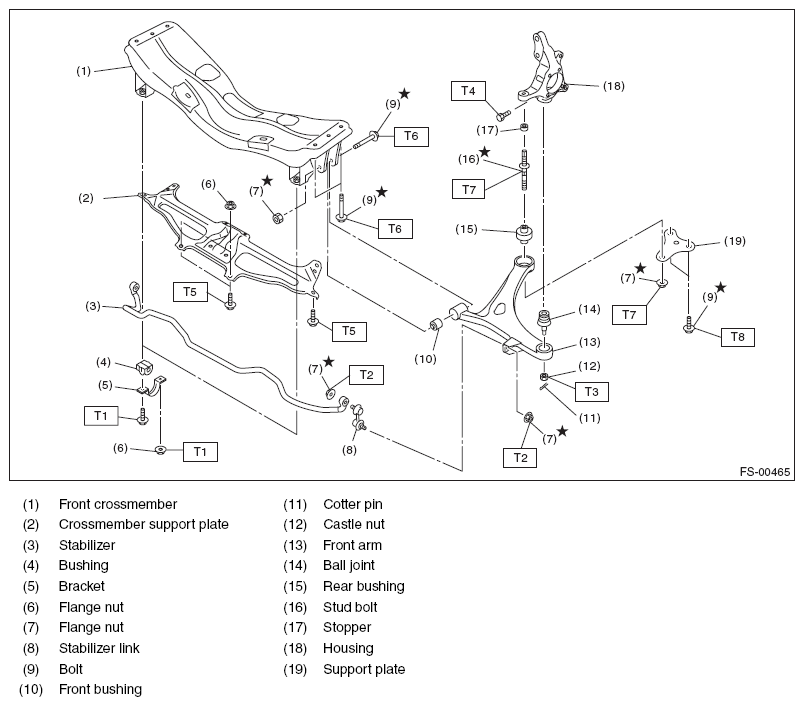

  Fig 1: Identifying Front Suspension Components (Except For STI Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 38 (3.9, 28.0)

T3: 39 (4.0, 28.8)

T4: 50 (5.1, 36.9)

T5: 60 (6.1, 44.3)

T6: 95 (9.7, 70.1)

T7: 110 (11.2, 81.1)

T8: 150 (15.3, 110.6)

• STI model

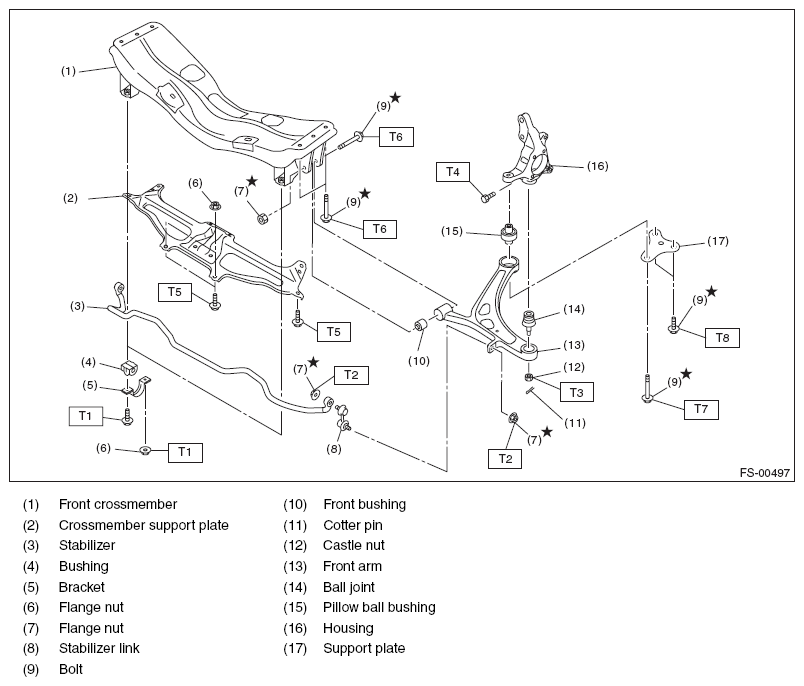

  Fig 2: Identifying Front Suspension Components (STI Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 38 (3.9, 28.0)

T3: 39 (4.0, 28.8)

T4: 50 (5.1, 36.9)

T5: 60 (6.1, 44.3)

T6: 95 (9.7, 70.1)

T7: 140 (14.3, 103.3)

T8: 150 (15.3, 110.6)

• Strut

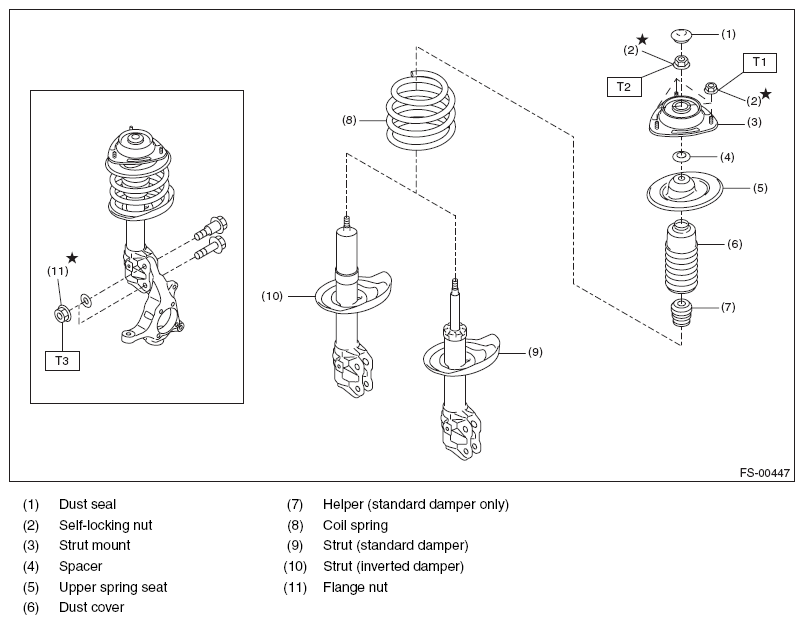

  Fig 3: Identifying Strut Components

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: 55 (5.6, 40.6)

T3: 155 (15.8, 114.3)
