Pipe Assembly: Installation

  1. Temporarily tighten the hose bracket bolt.

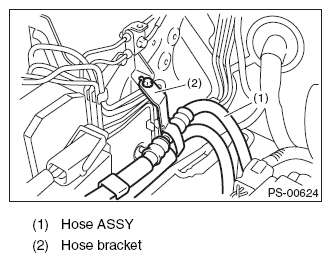

    Fig 1: Identifying Hose Assembly And Bracket
    G08542648Courtesy of SUBARU OF AMERICA, INC.
  2. Install the plastic clip to the pressure hose and suction hose.
    CAUTION: Align the installation position of the plastic clip with the protector edge of the suction hose.
    Fig 2: Identifying Suction And Pressure Hose, Plastic Clip And Protector
    G08542649Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the suction hose and return hose to the reservoir tank.
    CAUTION: Firmly insert the plastic clip of return hose to the bracket.

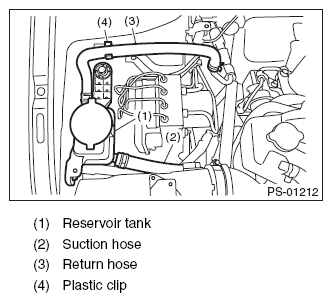

    Fig 3: Identifying Suction And Return Hose, Plastic Clip And Reservoir Tank
    G08542650Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the suction hose and pressure hose to the oil pump. Tighten the eye bolt of pressure hose.

    Tightening torque:

    40 N.m (4.1 kgf-m, 29.5 ft-lb)

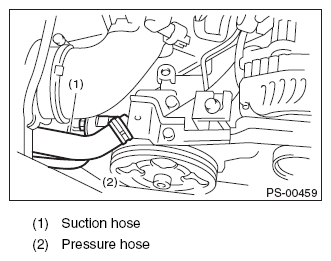

    Fig 4: Identifying Oil Pump Suction And Pressure Hose
    G08542651Courtesy of SUBARU OF AMERICA, INC.
  5. Temporarily connect the pressure hose to feed pipe and return hose to return pipe. Temporarily tighten the bolt of clamp E.
    Fig 5: Identifying Return And Pressure Hose, Return And Feed Pipe, Clamp
    G08542652Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Make sure that the character "8" on each clamp is positioned on the opposite side, as shown in the figure.
    Fig 6: Identifying Character 8 On Each Clamp Positioned On Opposite Side
    G08542653Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten clamp E.

    Tightening torque:

    7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

  7. Tighten the pressure hose to feed pipe and return hose to return pipe.

    Tightening torque:

    15 N.m (1.5 kgf-m, 11.1 ft-lb)

  8. Connect pipes A and B to the four pipe joints of the gearbox.

    Tightening torque:

    Refer to "COMPONENT" of "General Description". < Refer to  POWER ASSISTED SYSTEM  , COMPONENT, General Description. >

    Fig 7: Locating Connecting Pipes Of Gearbox
    G08542654Courtesy of SUBARU OF AMERICA, INC.
  9. Install the front crossmember support plate and jack-up plate.
  10. Lower the vehicle.
  11. Tighten the bolts which hold the hose bracket.

    Tightening torque:

    10 N.m (1.0 kgf-m, 7.4 ft-lb)

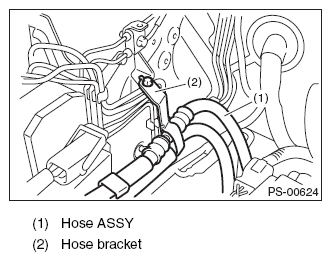

    Fig 8: Identifying Hose Assembly And Bracket
    G08542655Courtesy of SUBARU OF AMERICA, INC.
  12. Install the air intake duct.
    • Except for STI model: < Refer to INSTALLATION , Air Intake Duct. >
    • STI model: < Refer to INSTALLATION , Air Intake Duct. >
  13. Connect the battery ground terminal.
  14. Fill with the specified fluid.
    CAUTION: Never start the engine before filling with fluid; otherwise the vane pump may become seized.
  15. Finally, check the clearance between pipes or hoses as shown in the figure indicated in "General Diagnostic Table". < Refer to INSPECTION OF CLEARANCE , INSPECTION, General Diagnostic Table. >
