Steering Wheel And Column

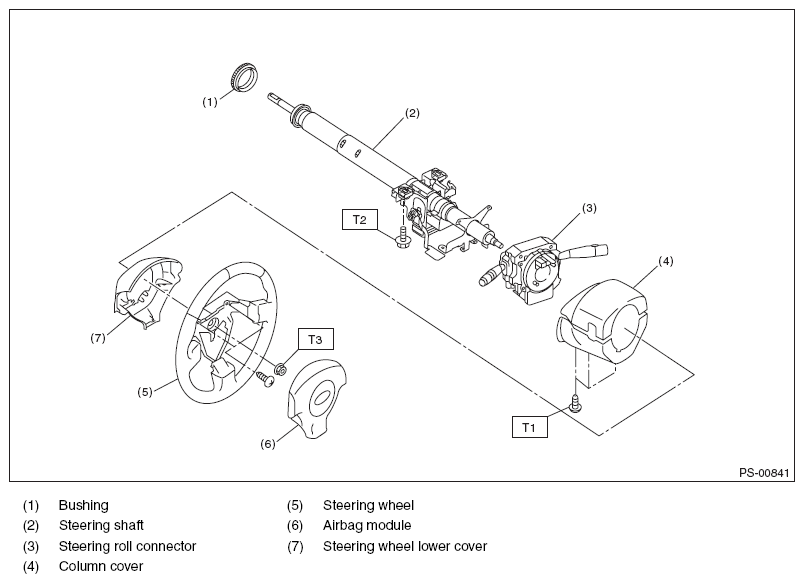

Fig 1: Steering Wheel And Column Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.2 (0.12, 0.9)

T2: 20 (2.0, 14.8)

T3: 39 (4.0, 28.8)
