Impreza WRX STI Limited
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls (Diagnostics) (H4DOTC)
>>
Electrical Component Location
>>
Location
>>
Control Module
Control Module

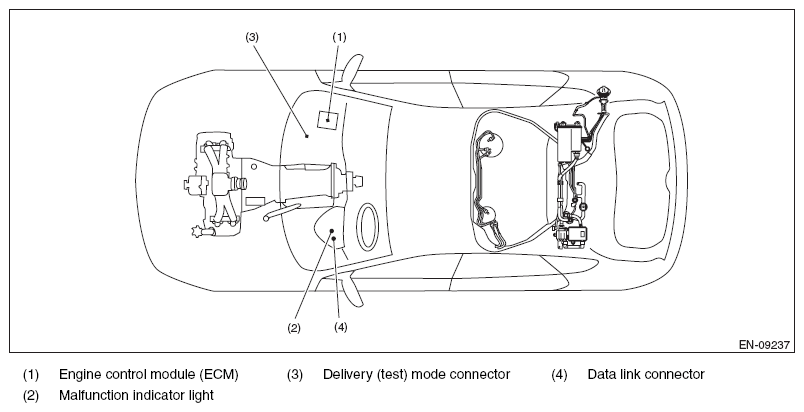

Fig 1: Identifying Engine Control Module, Malfunction Indicator Light, Delivery Mode Connector And Data Link Connector (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

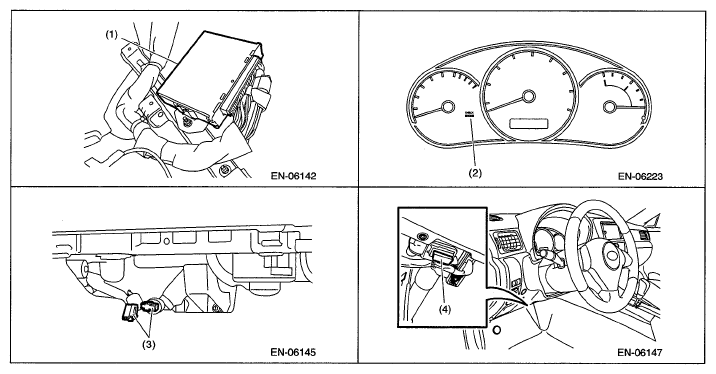

Fig 2: Identifying Engine Control Module, Malfunction Indicator Light, Delivery Mode Connector And Data Link Connector (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
