RH Side

Release the fuel pressure. < Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Refer to REMOVAL , Intake Manifold. >
Remove clip (A) holding the engine harness to the fuel pipe protector RH, and remove the fuel pipe protector RH from the intake manifold.

Fig 2: Identifying Fuel Pipe Protector Clamp (RH)
Courtesy of SUBARU OF AMERICA, INC.

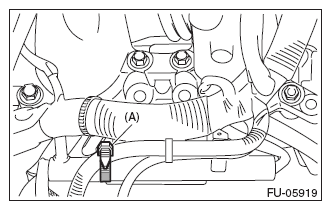

Remove the harness band (A) which holds the engine harness to the fuel injector pipe RH.

Fig 3: Identifying Harness Band (RH Side)
Courtesy of SUBARU OF AMERICA, INC.

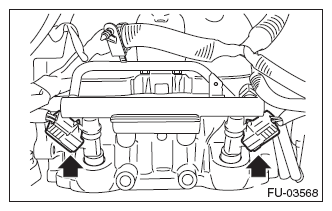

Disconnect the connector from fuel injector.

Fig 4: Locating Fuel Injector Connectors
Courtesy of SUBARU OF AMERICA, INC.

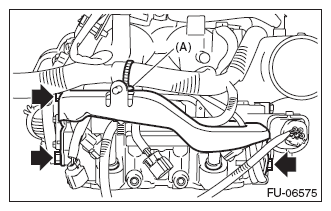

Remove the bolts which hold fuel injector pipe RH.

Fig 5: Locating Fuel Injector Pipe Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

Fig 6: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
