LH Side

Release the fuel pressure. < Refer to RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler lid and remove the fuel filler cap.
Remove the intake manifold. < Refer to REMOVAL , Intake Manifold. >
Remove the fuel pipe protector LH from the intake manifold.

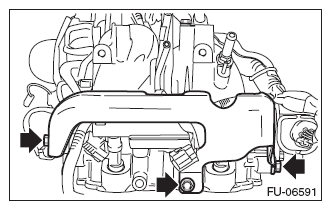

Fig 2: Locating Fuel Pipe Protector Bolts (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness band (A) which holds the engine harness to the fuel injector pipe LH.

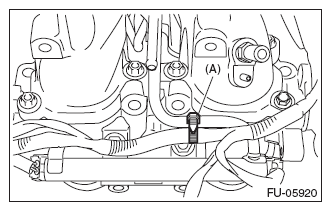

Fig 3: Identifying Harness Band (LH Side)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from fuel injector.

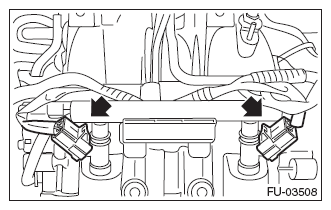

Fig 4: Locating Fuel Injector Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold fuel injector pipe LH.

Fig 5: Locating Fuel Injector Pipe Bolts (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Locating Fuel Injector Pipe Bolts (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector.

Fig 7: Removing Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
