VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Inspection: Notes

  1. Check the condition of connection and settlement of connector.
  2. Check the mark used for VDCCM&H/U identification.

    Refer to "SPECIFICATION" for identification mark. < Refer to SPECIFICATION , General Description. >

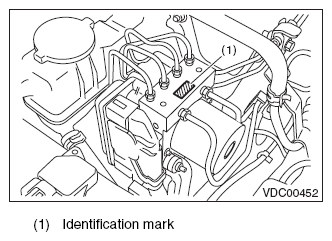

    Fig 1: Identifying VDC Identification Mark
    G08542311Courtesy of SUBARU
